Controls!

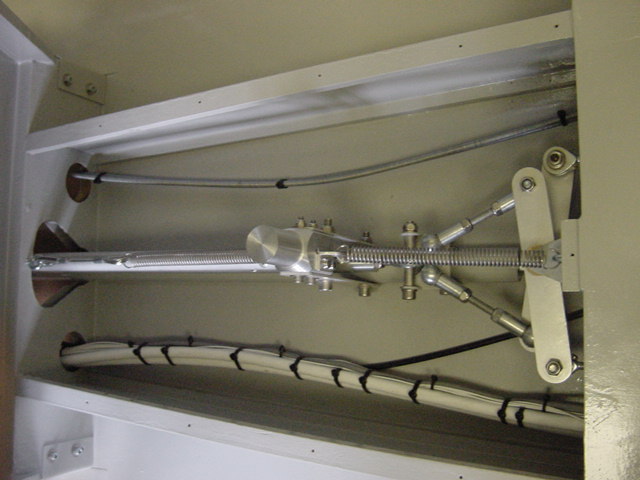

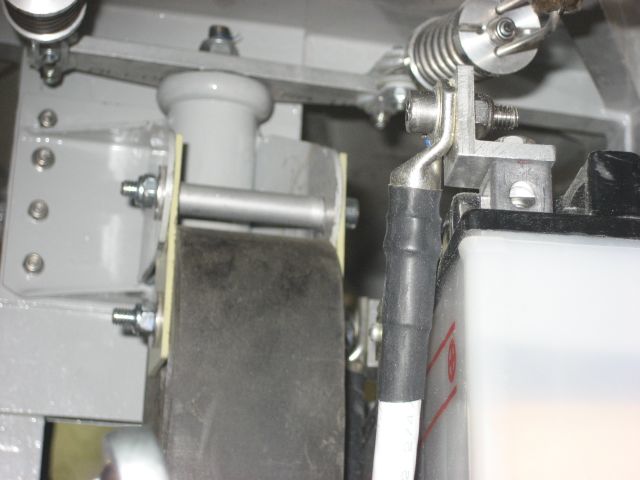

29-12-2007 Trim cable casing on the nose wheel tube	29-12-2007 Trim spring, bracket and cable mounted on canard spar

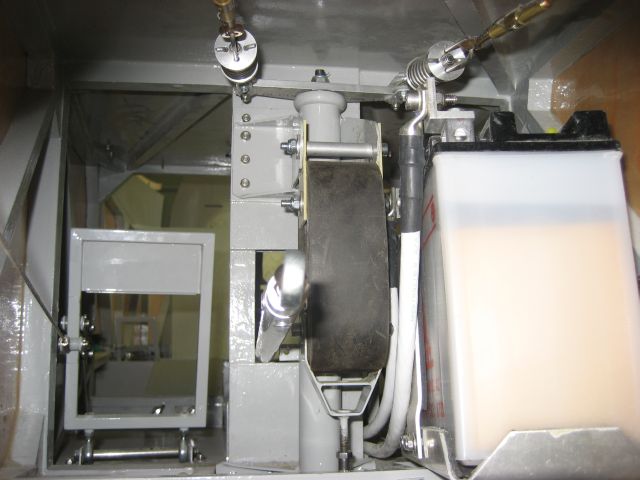

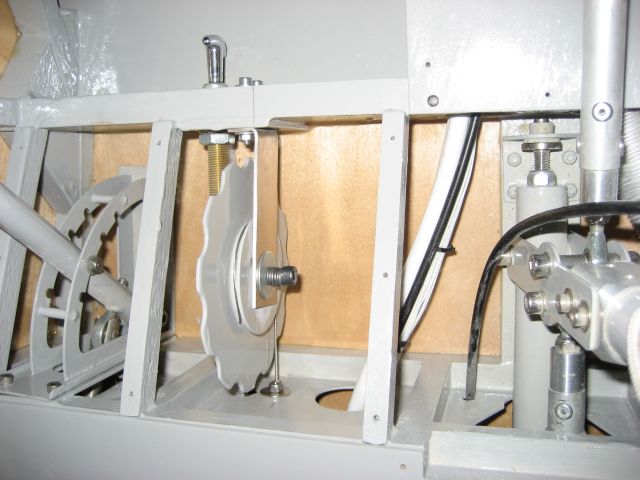

29-12-2007 Trim wheel mounted next to flaps selector	29-12-2007 Trim wheel inside view

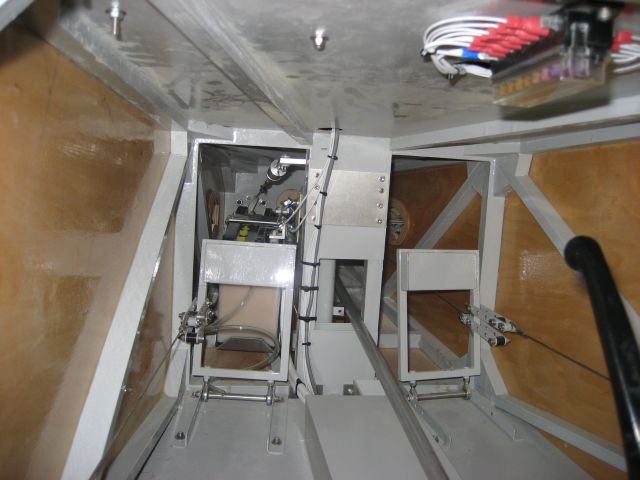

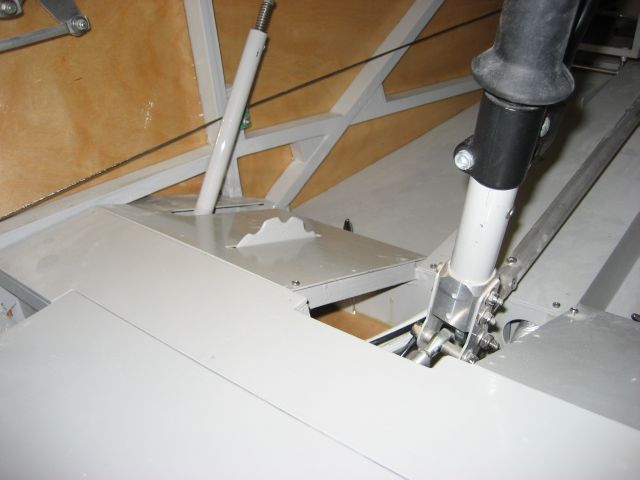

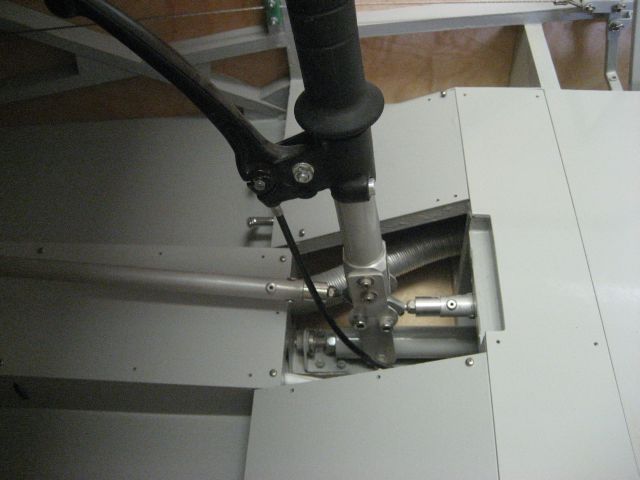

14-06-2007 Pilot view to the front	14-06-2007 Elevator control rod is mounted on stick with a small offset.

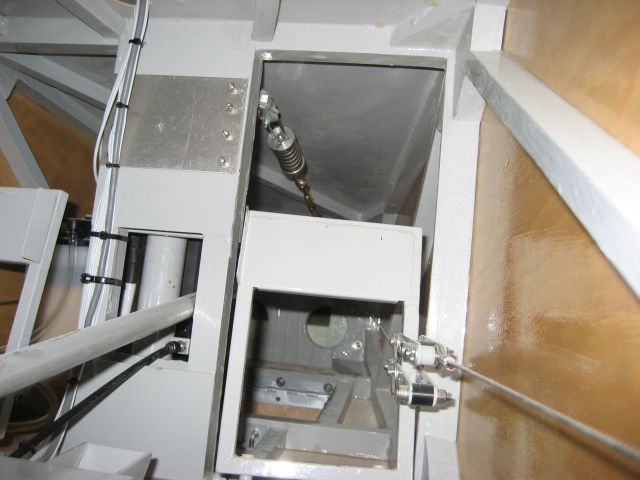

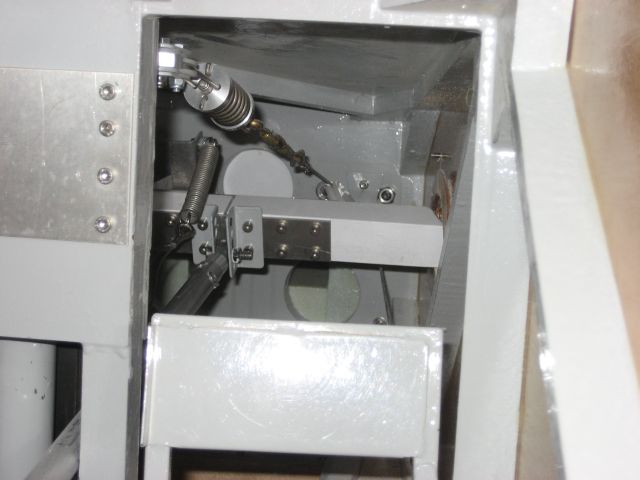

14-06-2007 Elevator control rod. Had to change the bungee upper mount. Control rod was interfering with the lower bungee bolt.	14-06-2007 Elevator control rod. Had to change the bungee upper mount. Control rod was interfering with the lower bungee bolt.

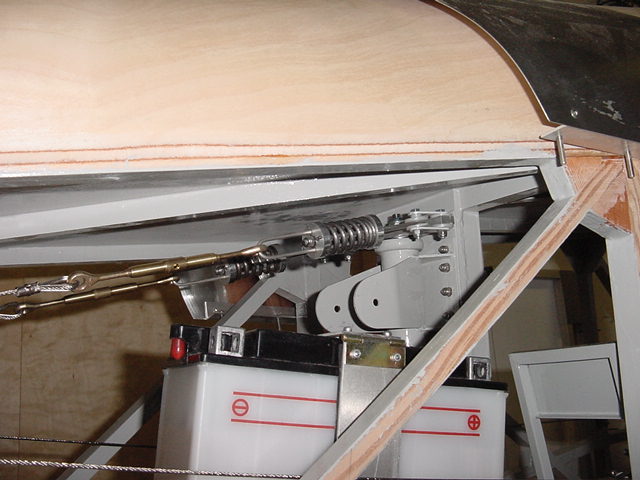

25-05-2006 controls fuselage ready  mixer	25-05-2006 controls fuselage ready  rudder horn

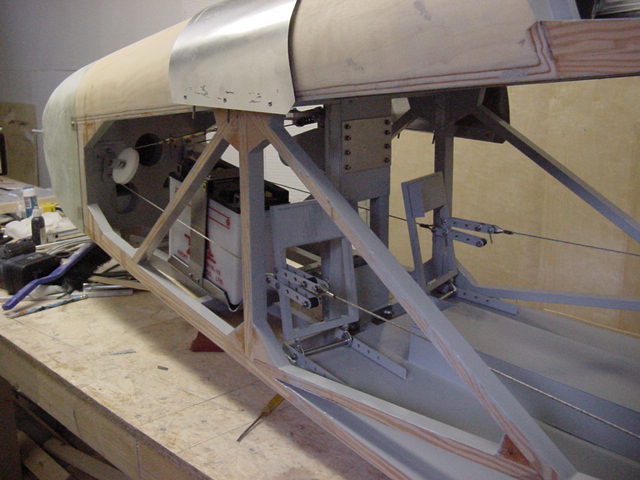

14-06-2005 rudder cable conection on front gear.	25-05-2006 controls fuselage ready

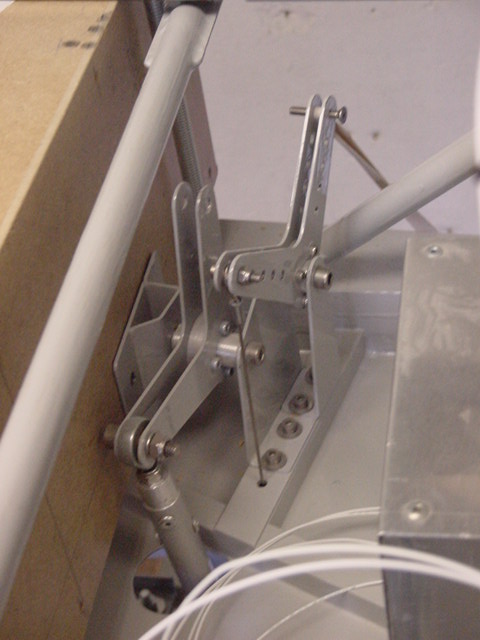

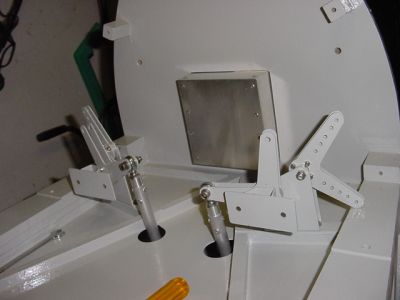

14-06-2005 I made a small offset between the two rodends on the main stick . They where comming together.	14-06-2005  Rudder cables and pedals mounted.

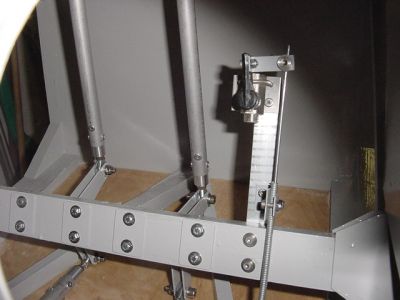

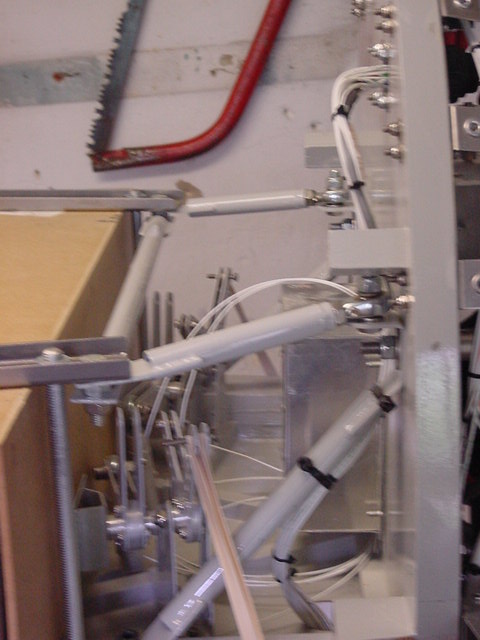

12-04-05  pushrods for ailleron control, and remote fuel valve	12-04-05  pushrods for ailleron control, topend. Spar is stil missing!

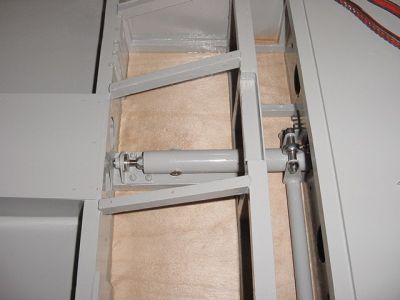

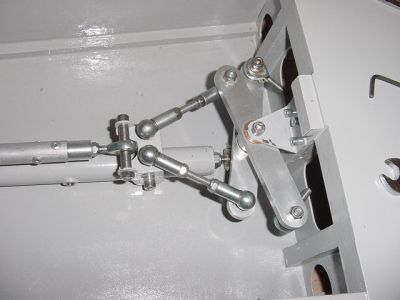

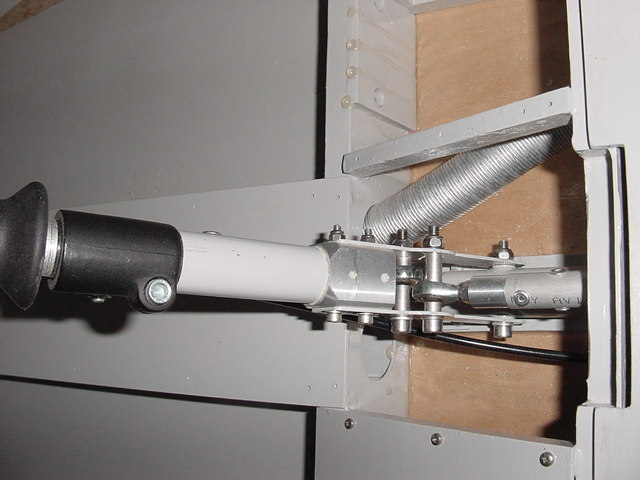

the mixer. I changed the rod ends with a ball type. This type has more angular movement. The original rod ends gave less stick movement.	The stick torque tube is made of 1" tube. This is the maximun. Better use the 20mm. I have only 1mm clearence between flap torque tube and rod end.

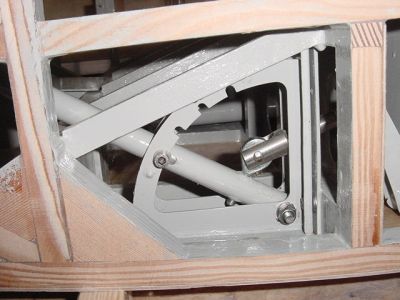

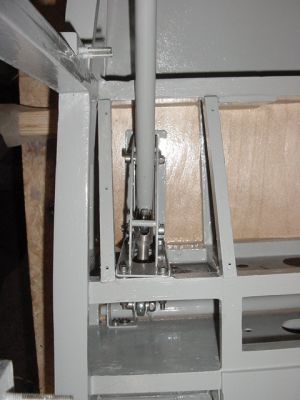

The flaperon control lever is on a small angle with the centerline of the fuselage. On one side I put two extra washers between the bracket and the frame. Now it is possible to put your hand on the lever without touching the frame.	side view of the flaperon lever system
