| landing gear |
|
 |
 |

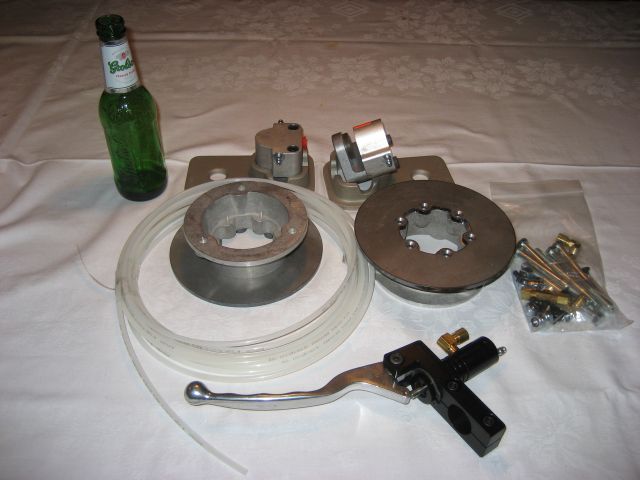

| 06-04-2008 New brake parts arived (on my
birthday). The drumbrakes where not holding the plane when the engine revs
over 2000 rpm |

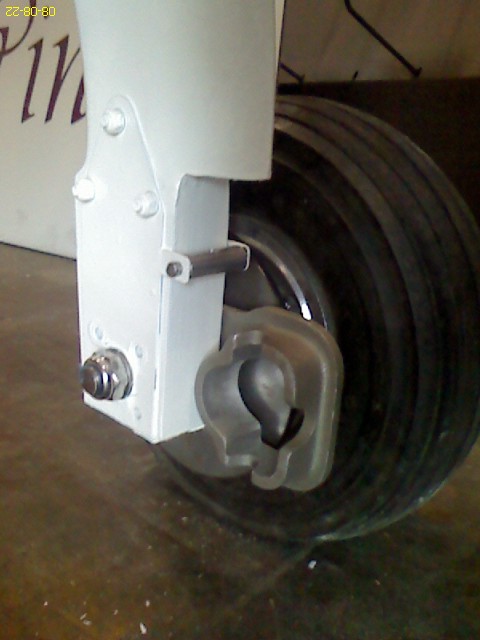

22-08-2008 Re-worked the
axels, testfit on gearleg. brakelines and master cilinder follow later.
|
 |
 |

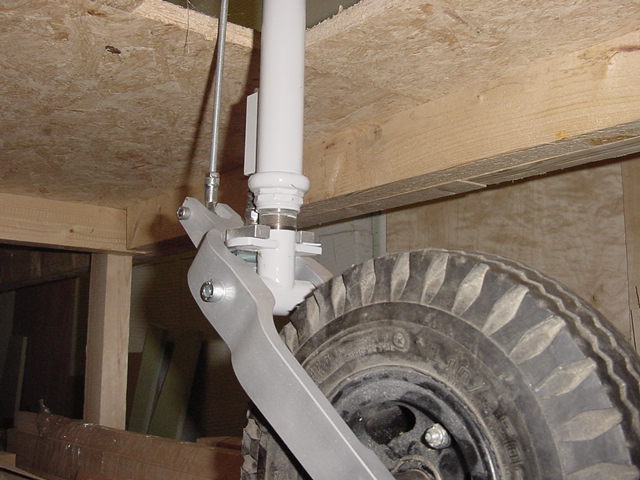

| 02-02-2006 finished the nosewheel fork
including the handbrake bumpstop (hardly vissible) Need some frixion
material for anti shimmy brake. anyone???? |

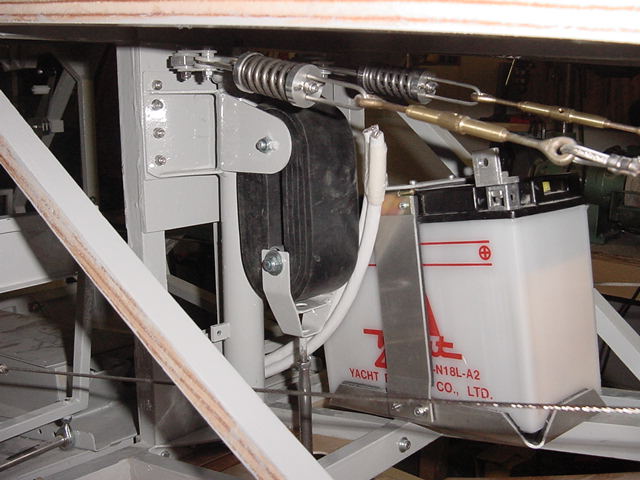

07-03-06 Top end ready including the
turn buckle? The bungee arrived at last! Thank you Christian (only available in France) http://www.malbert.fr/Essieux.htm
( battery cables are also vissible) |
 |
 |

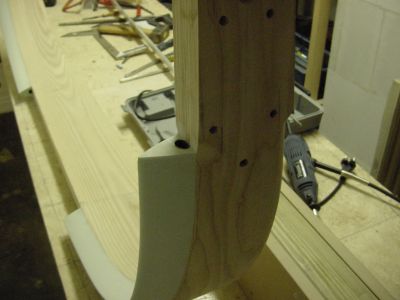

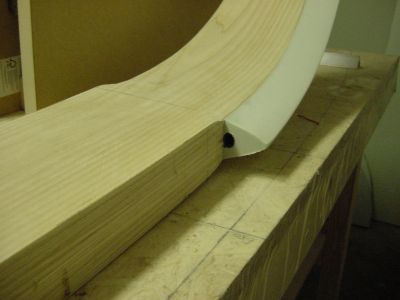

| After lots of sanding and shaping it is ready
for receiving a layer of glass on the fairings |

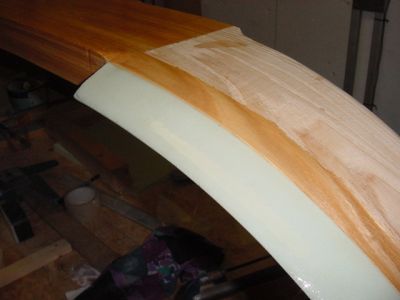

03-04-05 The PS foam fairing
got a layer of glass and epoxy |
 |
 |
|
Top end !
|
I put a soft PVC tubing in the fairing for
brake cables. |
 |
|
| Testfit the wheels
and brakes. ( azuza ). at this stage i have to glue the fairings. You can
see the mold in the back! |
The fork is
machined from a single piece of aluminium. In this stage it is not working
well. It need some extra milling. the fork is comming to the shimmy brake
plate. |
 |
 |
| Nose wheel testfit.
No anti shimmy brake yet and the wrong bungies! |

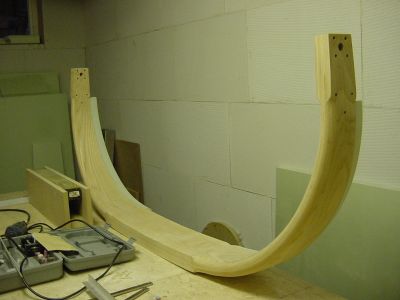

Laminating the ash
10 layers (10 days). After curring and releasing the clamps it became 1
inch wider. |
|
|
|
|
|
|
