| Metal parts
Before making the metal parts I made a drawing of them in autocad. These files are used for laser cutting the sheet metal. All went well but next time no lasercutting any more. The edges of the parts are hardened because of the heat. When bending small cracks come up on the the edges. All these cracks I had to rework with TIG welding. Next time watercutting. Also for the machined parts I made drawings. |
|
| Below some fotos of theparts I made | |
 |
 |
| Bellcrank for ailleron and vertical sabilizer control. Mounted behind the mainspar in the fuselage | Bellcrank for ailleron control. Mounted in the fuselage. |
 |
 |
| Bellcrank for ailleron control. Mounted in the middle of the mainwing | Bellcrank for vertical stabilizercontrol. Mounted at the outer end of the mainwing. |
 |
 |
| Outer canard hinge | Inner canard hinge |
 |
 |

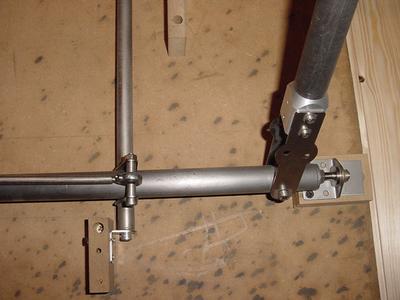

| Front ailleron control | Back ailleron control and mixer |
 |
 |
| Mixer control flaps/ailleron | Inner ailleron hinge |
 |
 |

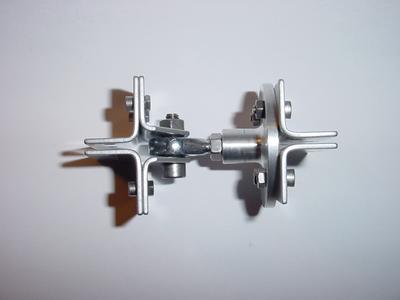

| Middle ailleron hinge with control | Outer ailleron hinge |
 |
 |
| Lower front gear, anti shimmy | Top front gear |
 |
|
| Cable pully in the front | |
| watercut files steel 1,5 mm | staal-1.5mm.dxf |
| watercut files steel 1 mm | staal-1mm.dxf |
| watercut files steel 2mm | staal-2mm.dxf |
